Stainless steel lab-scale and pilot-scale custom-made systems

Adsorption, ion exchange and industrial chromatography systems

From Rapid Small-Scale Column Tests (RSSCT) to pilot scale, we manufacture custom-made systems for your needs. For testing separation processes, such as: GAC, ion exchange, non-ionic adsorbent resin etc.

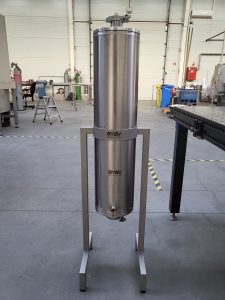

For one of our customers we manufactured a jacketed, insulated column according to their specifications.

  • Wetted materials: 316L stainless steel
  • Maximum pressure: 16 bar
  • Insulation: 50 mm
  • Applicable for testing adsorption processes, columns regeneration, low pressure industrial chromatography

Membrane separation systems

For lab- and pilot scale testing, we manufacture membrane testing systems for your needs. For testing microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), reverse osmosis (RO) separation processes. Custom-made systems available according to your needs.

For the University of Pannonia we manufactured a stainless steel membrane tester.

  • Accepts RX300 (MP025) and 1812 membrane modules
  • Wetted materials: electropolished 316L stainless steel
  • Maximum pressure: 8.5 bar
  • Applicable for testing MF, UF and low-pressure NF, RO
  • Temperature control through built-in heat exchanger
  • PID control of transmembrane pressure, crossflow rate, temperature, permeate flow rate available
  • Data logging (flow rates, temperature, pressure values) available

20231124 115257

Choose GYGV for precision and reliability for your stainless steel lab- and pilot scale system needs. Contact us today!
